ST3

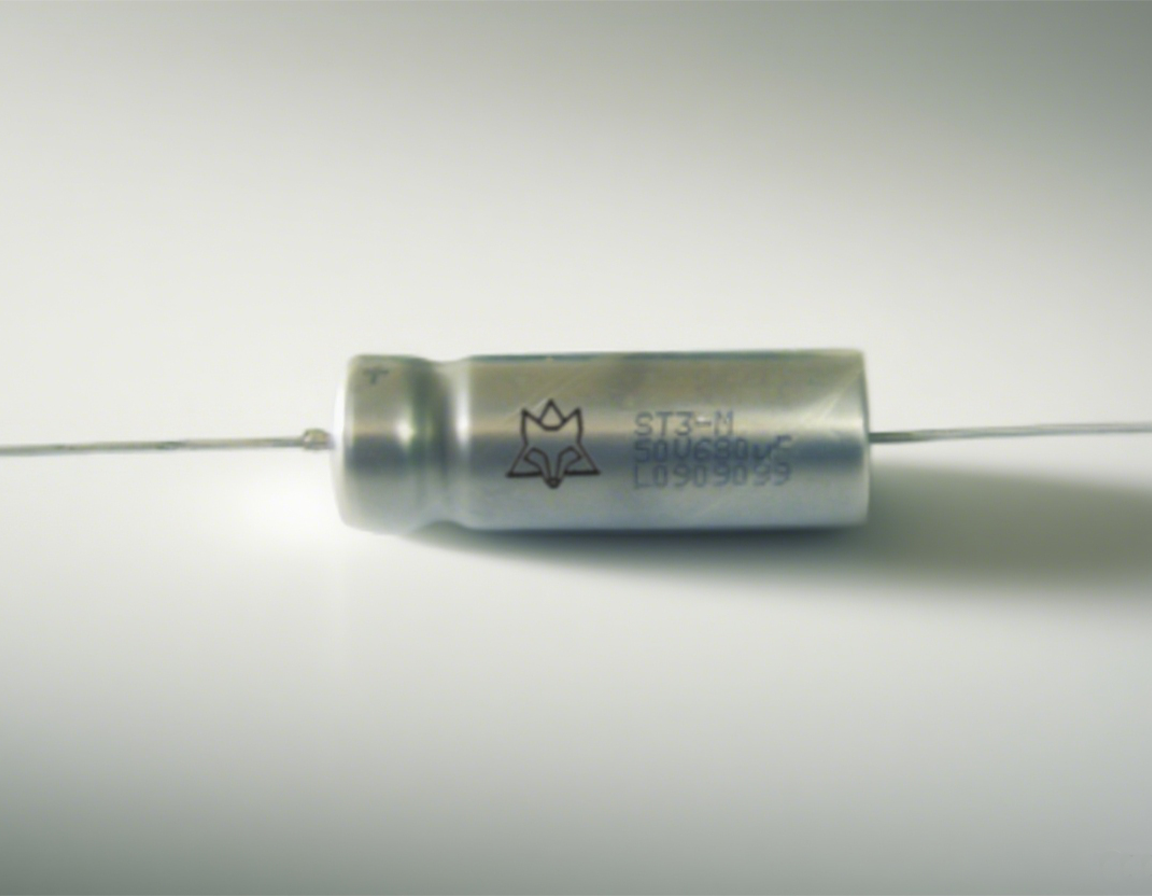

● All-tantalum case, insulated outer sleeve, with failure rate grade, hermetically sealed, cylindrical, axially leaded, polarized;
● Excellent and stable electrical performance, high reliability, long lifespan, good storage stability, and can withstand a relatively large ripple current;
● Suitable for DC or pulsating circuits of military electronic equipment with reliability requirements in fields such as aerospace, spaceflight, aviation, satellites, missiles, weapons, electronics, ships, and communications;
● Implementation standards: GJB733B - 2011 and Q/CAXL060B - 2020;
● Ordering format: Product model - Rated voltage - Nominal capacitance - Capacitance tolerance: Order quantity; Example: ST3 - 50V - 680μF - K: 1000 pieces.

● Operating temperature range: -55℃ to +125℃ (when the temperature is above 85℃, use with derated voltage);
● Storage temperature range: -62℃ to +130℃;
● Capacitance tolerance: Class K: ±10%, Class M: ±20%;

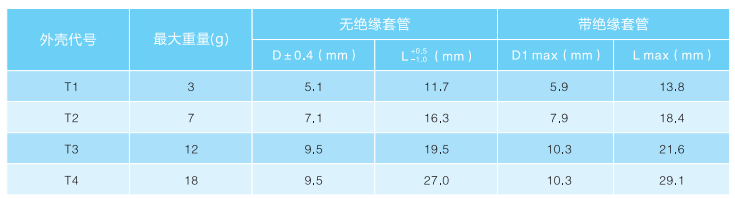

● Dimensions and maximum weight: Refer to Figure 1 and Table 1;

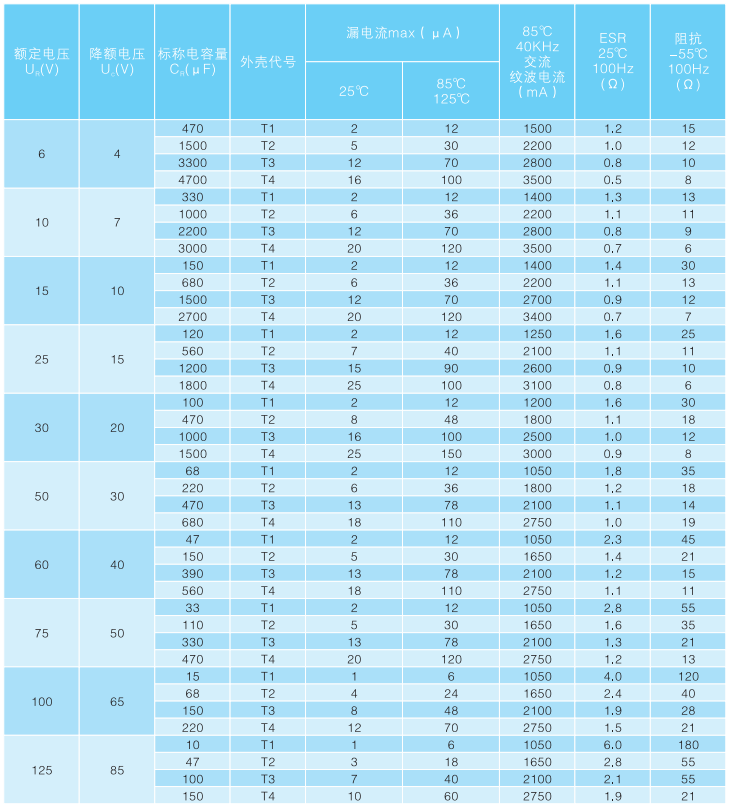

● Rated voltage, derated voltage, nominal capacitance, ripple current: Refer to Table 2;
● Leakage current, equivalent series resistance (ESR), impedance (Z): Shall not exceed the values specified in Table 2;
