THC1

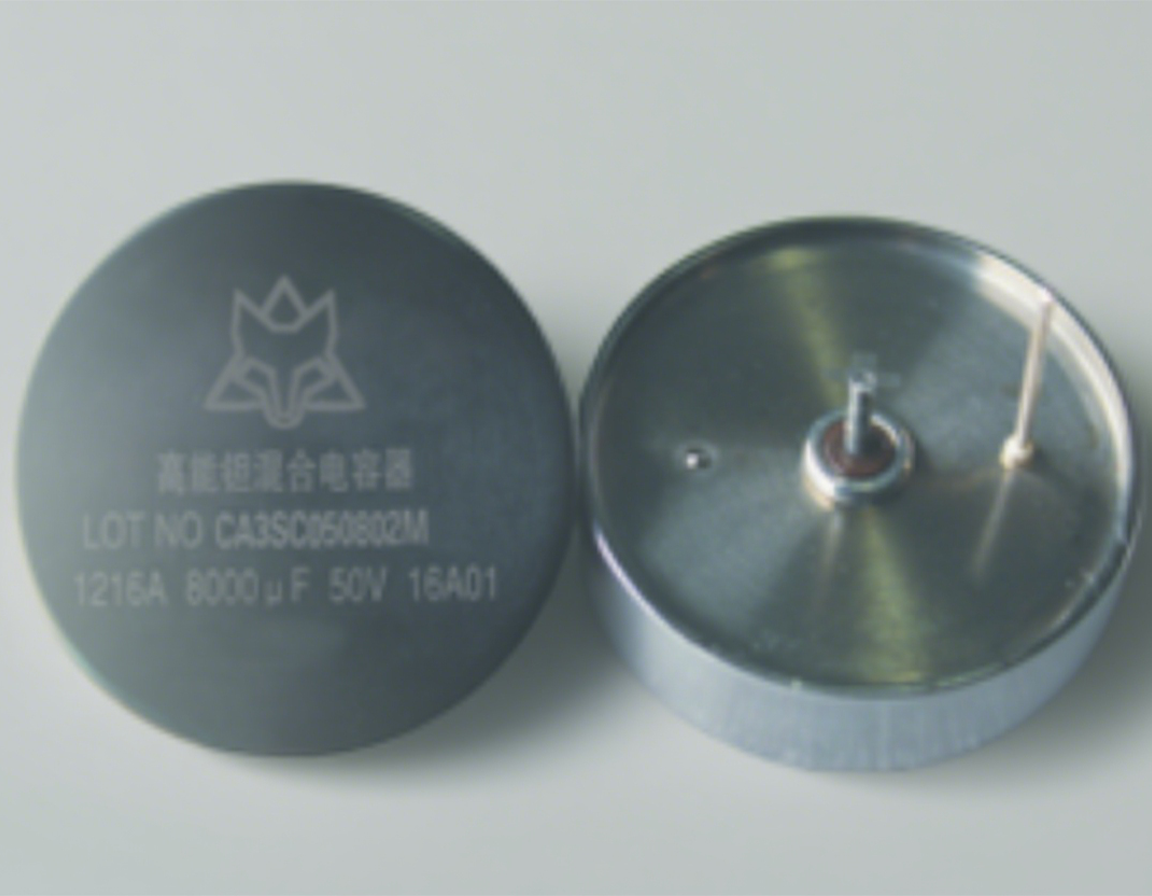

● Tantalum case, hermetically sealed, coaxial lead-out, polarized, ultra-large capacitance; various mounting structures with different shapes.
● Small size, large energy storage, excellent and stable electrical performance, high reliability, and long lifespan.
● Provide energy storage and power-off delay functions in the DC or pulsating circuits of military electronic equipment in fields such as astronautics, spaceflight, aviation, weaponry, electronics, ships, and communications.
● The THC series is equivalent to the THQ series of EVANS Company.
● Standards implemented: Standard 1: GJB1312A - 2001; Standard 2: GJB733B - 2011.
● Ordering format: Product model - Rated voltage - Nominal capacitance - Capacitance tolerance: Order quantity; Example 1: THC1 - 10V - 50000μF - M: 100 pieces, complying with GJB1312A2001 and Q/CAXL 183 - 2020; Example 2: THC1 - L21 - 125V - 1100μF - K: 100 pieces, complying with GJB733B - 2011 and Q/CAXL 183 - 2020.

● Operating temperature range: -55℃ to +125℃ (when the temperature is higher than 85℃, use with derated voltage);
● Storage temperature range: -62℃ to +130℃;
● Capacitance tolerance: Class K: ±10%, Class M: ±20%.
